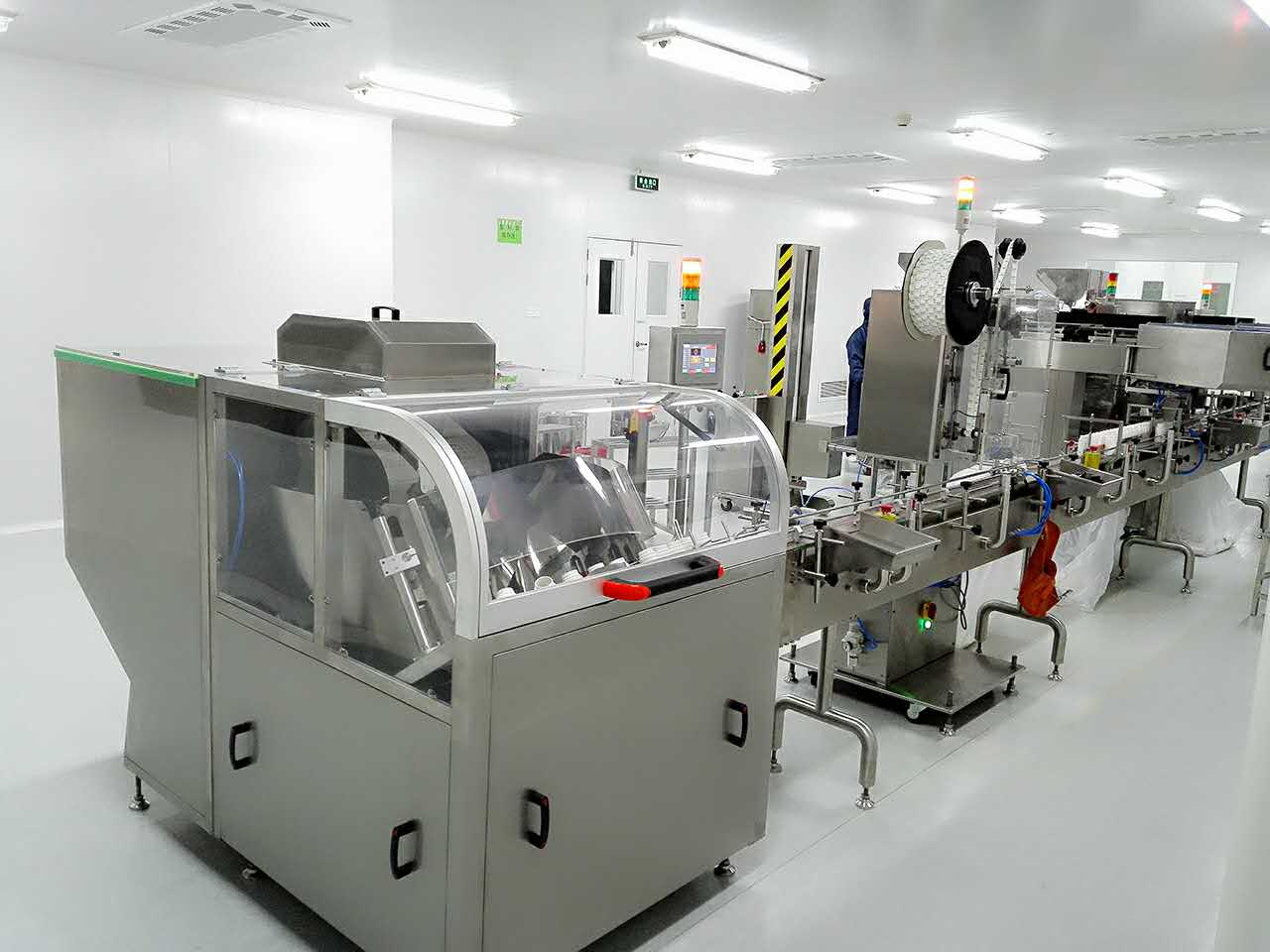

Automatic bottle unscrambler PXA-15

Automatic bottle unscrambler PXA-15

1) Technical parameters:

2) Performance characteristics

² The main structure is made of 304 stainless steel, which meets GMP requirements.

² The main components are all internationally renowned brand products.

² Adopt SIEMENS PLC and Proface touch screen control system.

² Suitable for plastic bottles of various specifications, including round bottles, square bottles, and special-shaped bottles.

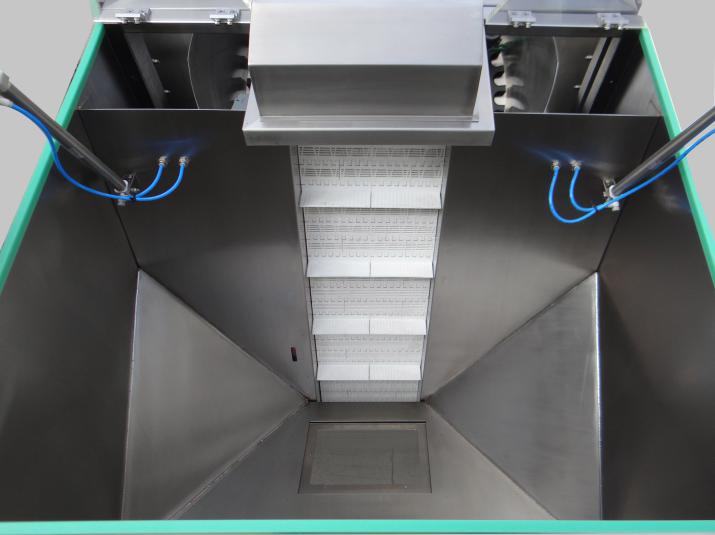

² Large capacity 304 stainless steel bottle storage bin, equipped with pneumatic control dust cover.

² The bottle storage bin is equipped with a low material level electric eye, and the bottle shortage automatically alarms.

² The lifting mechanism adopts SEW motor, which is controlled by signal transmission and starts and stops automatically.

² The lifting plate chain adopts engineering plastics that meet the requirements of GMP.

² The bottom of the storage bin is equipped with a transparent observation window.

² By monitoring the number of bottles in the unscrambler star wheel, the start-stop signal is output to the lifting mechanism.

² When changing product specifications, you only need to replace the specifications of the bottle unscrambler star wheel, which is convenient and quick.

² A bottle accumulator eye is installed at the exit.

² It can be equipped with static elimination and vacuuming device to assist in cleaning the bottle body (optional).

² Can be configured with inverted bottle, inverted bottle detection and rejection device (optional).

² Configurable outlet bottle dividing mechanism (optional).

² Configurable three-level password authority function (optional). Whether to delete the standard

3) List of main components

4) Equipment configuration list
