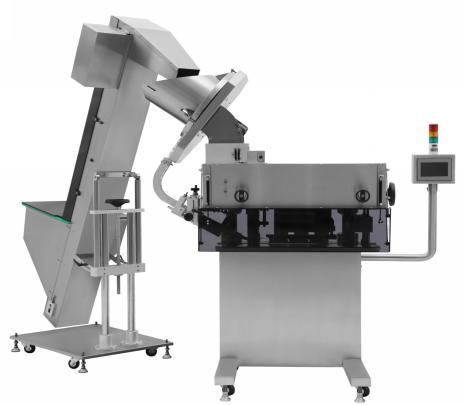

Linear Capping Machine PXD-20-3
1. Technical parameters
project | Specific parameters | Remark |
production speed | 200 bottles/min | related to material specifications |
Cover Specifications | Height 10-30mm Diameter Φ20～Φ55mm | |
Bottle diameter specification | Round bottle φ20~φ120mm Square bottle 20~120mm | |
bottle high specification | 40~200mm | |
power supply | AC220V 50/60HZ | |
power | About 1.0KW | |
air pressure | 0.5-0.7Mpa | |
Air consumption | About 210L/min | |
Dimensions | About 3002mm(L)×900mm(W)×2416mm(H) | |
weight | About 800kg |
2. Performance characteristics
The main structure is made of 304 stainless steel, which meets GMP requirements.
The main components are all internationally renowned brand products.
Adopt SIEMENS PLC and Proface touch screen control system.
Applicable to various specifications of screw caps, child safety caps, etc.
Floor-standing large-capacity stainless steel storage cover with a volume of 116L.
The bottle cap is transported by a stepped lifting belt structure.
The tooth-shaped groove cover is used to avoid the phenomenon of reverse cover.
The mechanism of hanging and supporting the cover adopts a quick-lock handle and a rotating handwheel adjustment mechanism, which is convenient and quick.
The capping mechanism consists of a clamping belt and three sets of capping wheels.
The clamping belt is made of non-toxic material timing belt, and the capping wheel is made of non-toxic material wear-resistant silicone.
The capping mechanism adopts a digital display rotating handwheel adjustment mechanism, which is convenient and quick.
The capping wheel drive adopts bevel gear box mechanism.
Equipped with defective capping, no aluminum foil, no cap detection and rejection device.
The capping part is used alone to complete the secondary capping function.
Four sets of capping wheels can be configured (optional).
Configurable capping torque detection function (optional).
Configurable three-level password authority function (optional).
3. List of main components
serial number | name | brand |
1 | Motor (capping mechanism) | German SEW |
2 | Motor (Lifting Mechanism) | German SEW |
3 | Motor (Lid Arrangement Mechanism) | Japan Panasonic |
4 | Motor (clamping mechanism) | German SEW |
5 | Filter Regulator Assembly | Japan SMC |
6 | leakage protector | SIEMENS Germany |
7 | breaker | SIEMENS Germany |
8 | One-way throttle valve | Japan SMC |
9 | The electromagnetic valve | Japan SMC |
10 | Rotary isolating switch | EATON |
11 | Programmable Controllers | SIEMENS Germany |
12 | Proximity sensor | Korea Autonics |
13 | Intermediate relay | Weidmuller, Germany |
14 | Inverter | American Allen-Bradley/Germany SIEMENS |
