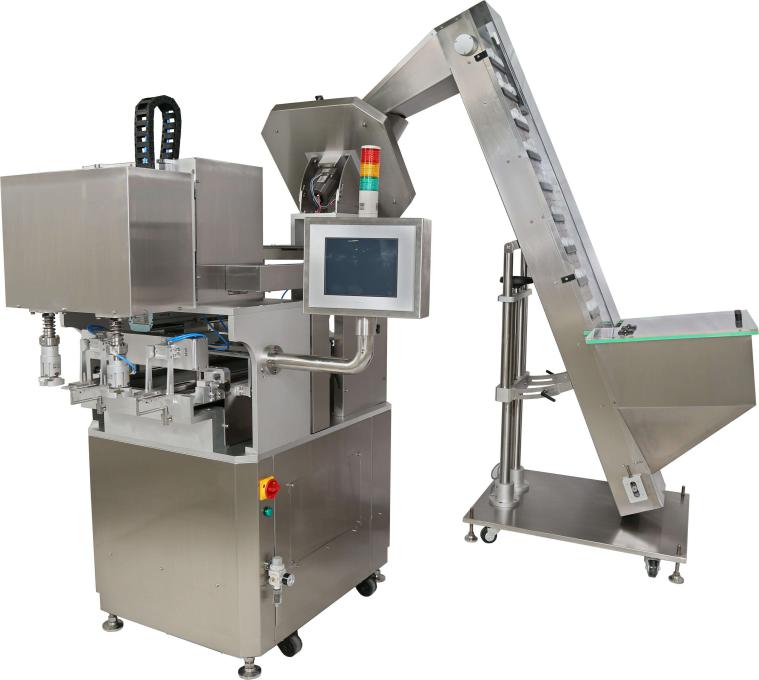

Double Head Servo Capping Machine PXD-70

Double Head Servo Capping Machine PXD- 70

1) Technical parameters

project	Specific parameters	Remark
production speed	70 bottles/min	related to material specifications
Cover Specifications	Height 10-30mm Diameter Φ20～Φ55mm
Bottle diameter specification	Round bottle φ20~φ120mm Square bottle 20~120mm
bottle high specification	40~200mm
power supply	AC380V 50/60HZ
power	About 4.5KW
air pressure	0.5-0.7Mpa
Air consumption	About 140L/min
Dimensions	About 1200mm(L) /2200(including elevator)mm(L)×1650mm(W)×2000mm(H)
weight	About 1000kg

2) Performance characteristics

² The main structure is made of 304 stainless steel, which meets GMP requirements.

² The main components are all internationally renowned brand products.

² Adopt Mitsubishi PLC and Proface touch screen control system.

² Applicable to various specifications of screw caps, child safety caps, etc.

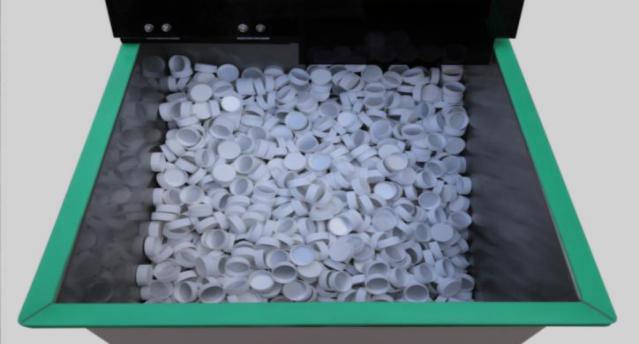

² Floor-standing large-capacity stainless steel storage cover with a volume of 116L.

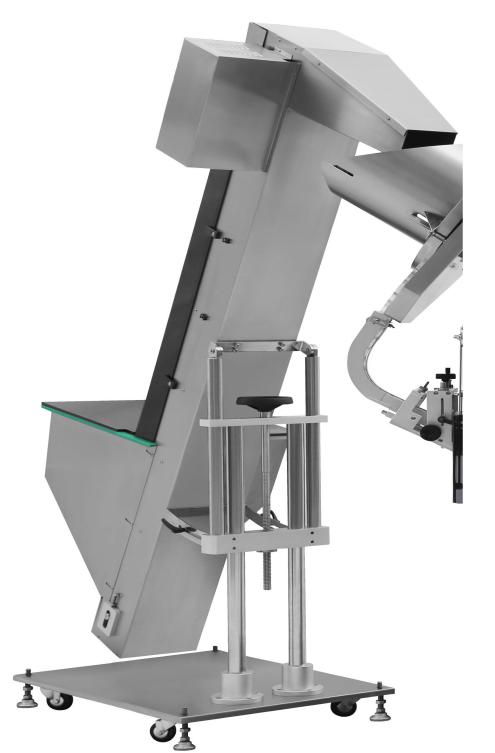

² The bottle cap is transported by a stepped lifting belt structure.

² Use tooth-shaped groove cover organizer or turntable cover organizer to avoid reverse cover phenomenon.

² Automatic cap delivery by manipulator, automatic cap removal by parallel three-jaw head.

² The capping head adopts SMC three-jaw cylinder.

² The pneumatic clamping mechanism is adopted, and the holding block is made of non-toxic material polyurethane.

² The capping motor adopts a servo motor with torque output, and the capping is controlled by precise torque.

² The screw cap lift motor adopts high-precision servo motor for precise positioning.

² The cap feeding mechanism is controlled by a servo motor, and the cap feeding position is precise.

² The number of groups of capping heads is selected according to the speed requirements (optional).

² Configure the capping torque detection function.

² Configurable three-level password authority function (optional).

3) List of main components
