Three-head servo rotary cover machine PXD-100

Three-head servo rotary cover machine PXD-100

1） technical parameter

project	Specific parameters	remarks
Maximum production speed	100 Boals / min	Related to the material specifications
Cover specifications	Height 10-30mm diameter 20-55mm
Vine diameter specification	Round bottles 20~ φ120mm square bottles 20 ~ 120mm
The bottle high specification	40~200mm
source	AC380V 50/60HZ
power	About 4.5KW
pressure	0.5-0.7Mpa
gas consumption	约180L/min
outline dimension	outline dimension
weight	weight

2）Performance characteristics

The main structure is made of 304 stainless steel material and meets the GMP requirements.

The main components are all using internationally famous brand products.

The Mitsubishi PLC and Proface touchscreen controls were used.

A variety of specifications of threaded cover, child safety cover, etc.

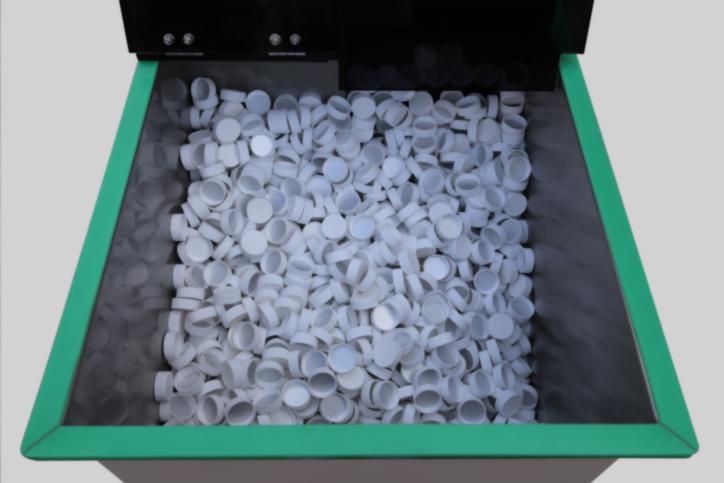

Floor type large capacity stainless steel storage cover warehouse, capacity of 116L.

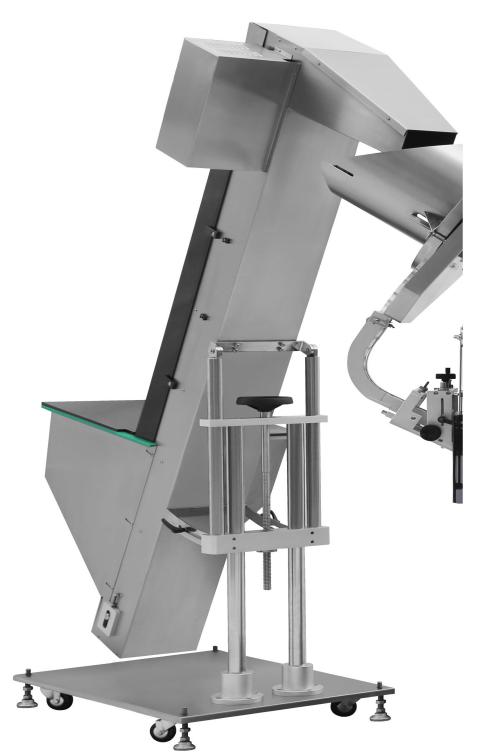

The bottle cap is delivered with a stepped lift belt construction.

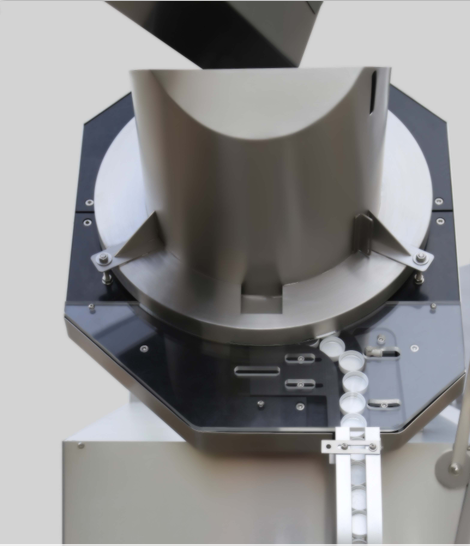

Ded groove cover or rotary cover is used to avoid reverse cover.

Ded groove cover or rotary cover is used to avoid reverse cover.

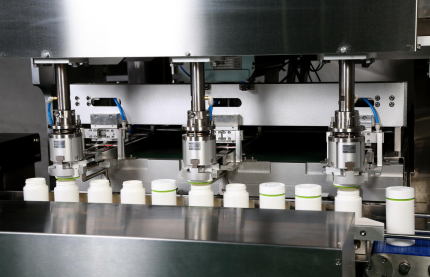

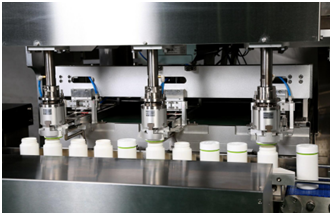

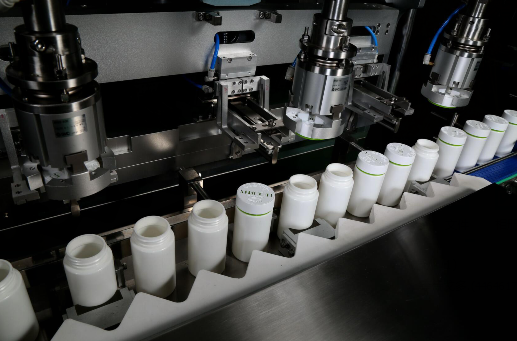

The rotary head uses an SMC three-claw cylinder.

Pneumatic clamp mechanism and non-toxic material polyurethane.

The rotary cover motor uses a torque output servo motor, accurate torsion control rotary cover.

The rotary cover lifting motor adopts a high-precision servo motor for accurate positioning.

The cover delivery mechanism is controlled by the servo motor for the accurate delivery cover position.

Holding cover cylinder adopts p

Equipped with poor rotary cover, no aluminum foil and no cover detection and removal device.

The number of groups is optional for speed (optional).

Configure the rotary cover torque detection function.

The Level 3 password permission function can be configured (optional).

List of main components
