Level-Stacked Bag Counting and Straightening Machine
moreControl installation and PLC control system (refer to the screenshot perspective with photos), electrical components are installed in the hood, compact structure.Enter the pneumatic system and the four-cylinder rotary wheel system (refer to the screenshot view with photos), the lower cylinder will push the automatic cotton plug machine automatic cotton plug machine into the rotating frame glass tube, the servo motor drives the four-cylinder rotor mechanism rotation 180, and the upper cylinder wi

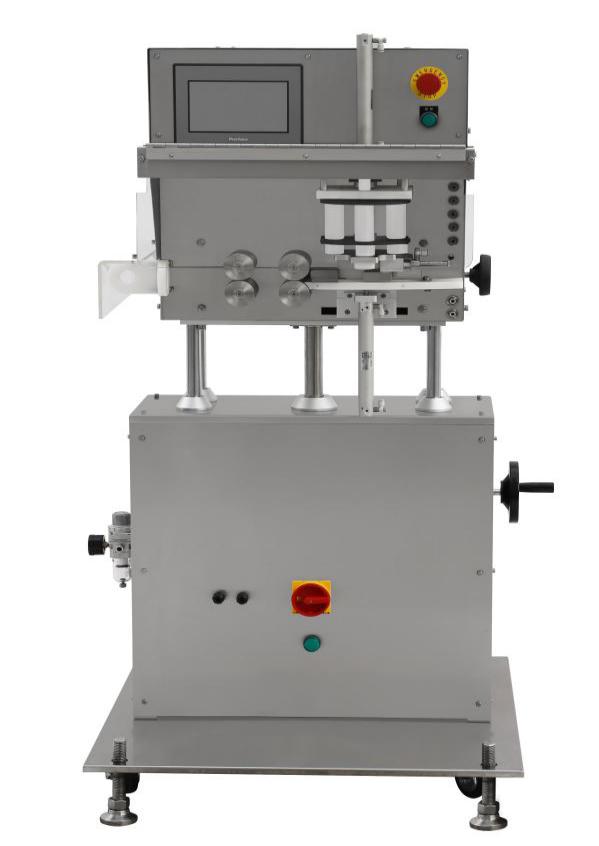

Plug cotton machinePXC-06C
project | Specific parameters | remarks |
Maximum production speed | 60 Bottle / minute | Related to the material specifications |
The length of the cotton | 80～170mm | |
Vine diameter specification | Round bottles 25~ φ100mm square bottles 25 ~ 100mm | |
The bottle high specification | 40~200mm | |
source | AC220V 50/60HZ | |
power | About 0.75KW | |
pressure | 0.5-0.7Mpa | |
gas consumption | About 70L / min | |
outline dimension | About 770mm (L) 760mm (W) 1540mm (H) | |
weight | About 170Kg |
2) Performance characteristics

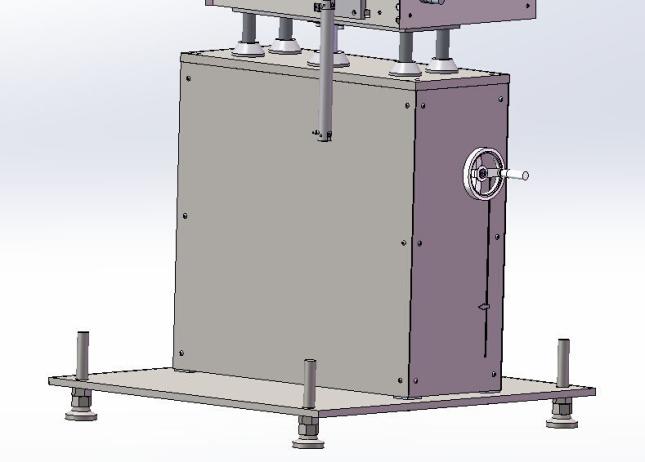

Lift adjustment mechanism (refer to the screenshot perspective view with photos), manually adjust the height range: 0-240mm.

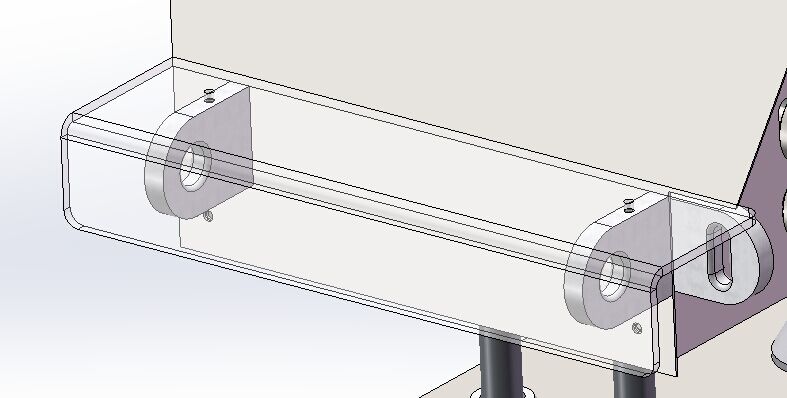

Device (refer to this screenshot view with photos), white PE plate is smooth.
Device (refer to this screenshot view with photos), white PE plate is smooth.

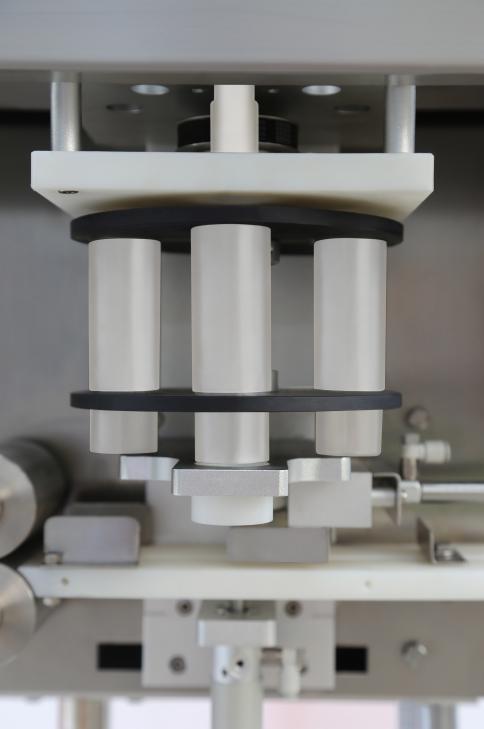

Control installation and PLC control system (refer to the screenshot perspective with photos), electrical components are installed in the hood, compact structure.Enter the pneumatic system and the four-cylinder rotary wheel system (refer to the screenshot view with photos), the lower cylinder will push the automatic cotton plug machine automatic cotton plug machine into the rotating frame glass tube, the servo motor drives the four-cylinder rotor mechanism rotation 180, and the upper cylinder will plug the cotton into the medicine cylinder.

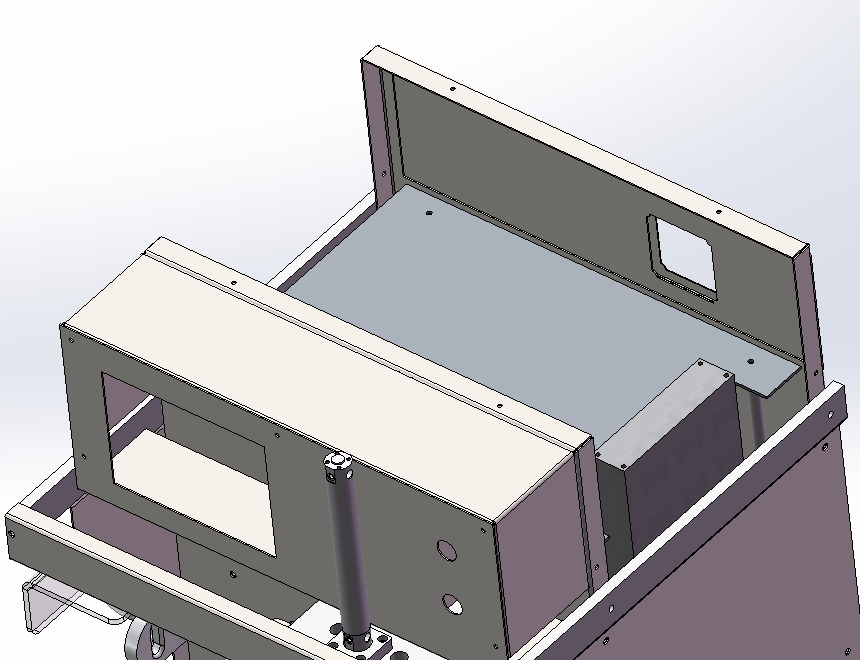

Control installation and PLC control system (refer to the screenshot perspective with photos), electrical components are installed in the hood, compact structure.
3) List of main components
order number | order number | order number | order number |
1 | servo motor | Japanese, YASKAWA | |
2 | servo drivers | Japanese, YASKAWA | |
3 | programmable control unit | SIEMENS, Germany | |
4 | touch screen | Japanese, proface | |
5 | Rotate the isolation switch | America EATON | |
6 | Measuring the electric eye | Germany LEUZE | |
7 | Leakage protector | SIEMENS, Germany | |
8 | DC contactor | SIEMENS, Germany | |
10 | circuit breaker | SIEMENS, Germany | |
11 | auxiliary relay | welldumule, Germany | |
12 | binding post | Phoenix, Germany | |
13 | Cotton transfer motor | Japan TPG | |
14 | Plug cotton cylinder | Japan SMC | |
15 | Fender cotton cylinder | Japan SMC | |
16 | bearing | Japan NSK | |
17 | electromagnetic valve |
