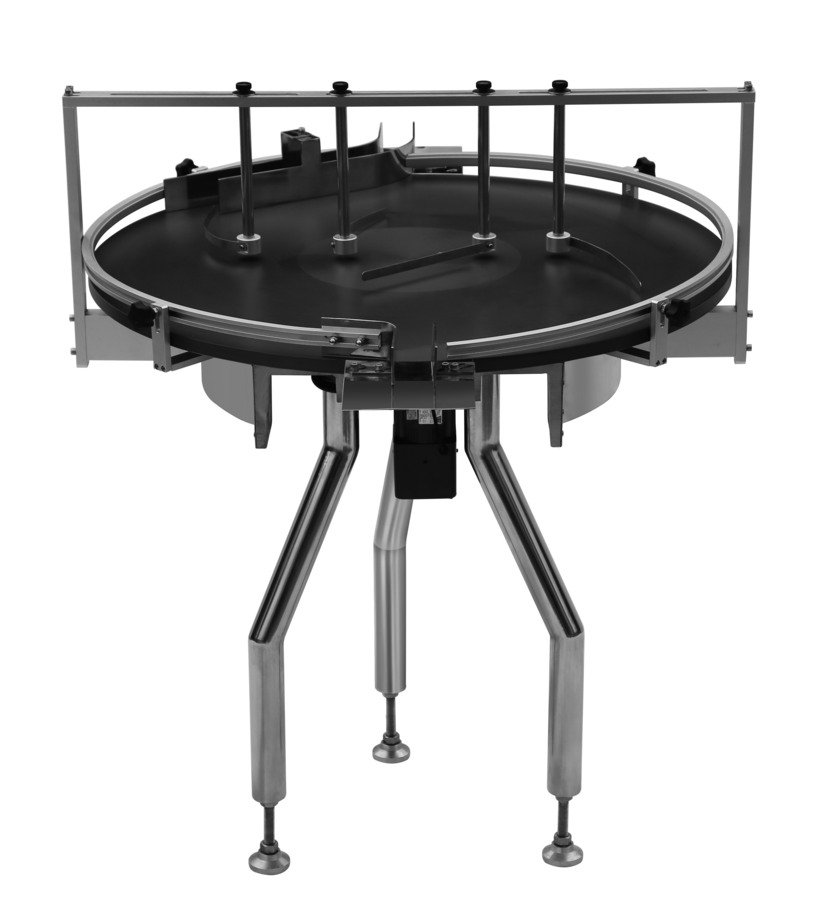

Turntable PXG-09
1. Technical parameters
project | Specific parameters | Remark |
Turntable table diameter | φ900mm | |
Rotating speed | 0~13 rpm | |
Bottle diameter specification | Round bottle φ25-φ100mm Square bottle 25-100mm | |
bottle high specification | 40~200mm | |
power supply | AC220V 50/60HZ | |
power | About 90W | |
Dimensions | About 950mm(L)x1275mm(W)x1180mm(H) | |
total weight | About 120Kg |
2. Performance characteristics
The bottle feeding and bottle feeding mechanism is made of mirror polished stainless steel.

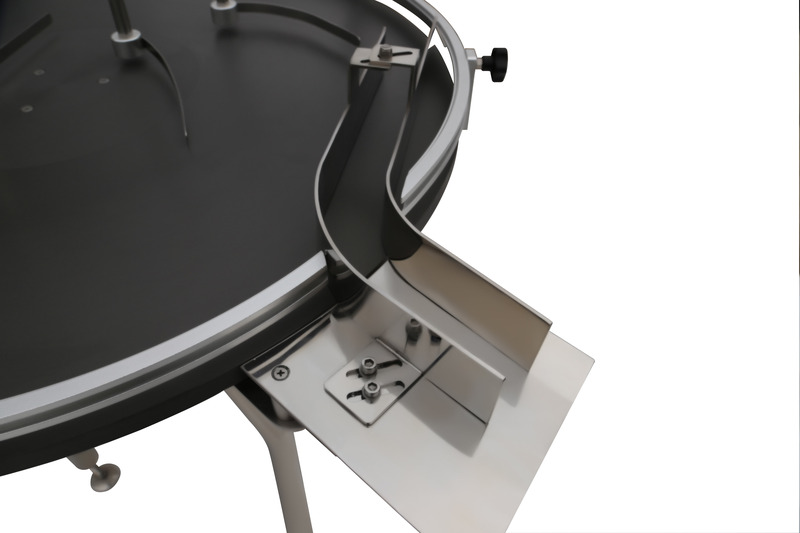

The surface of the turntable is sprayed with Teflon technology, the friction coefficient is small, and the bottom of the bottle will not be scratched or blackened.
The base of the turntable is made of a single piece of cast aluminum.
Adopt Panasonic speed motor.
3. List of main components
serial number | name | brand |
1 | Illuminated push button switch | French Schneider |
2 | motor | Japan Panasonic |
3 | Inverter | American Allen-Bradley/Germany SIEMENS |
4 | reducer | Japan Panasonic |
5 | Intermediate relay | Weidmuller, Germany |
(The above list may change slightly and use other brand products of the same level)
4. Equipment configuration list:
model | device name | quantity |
PLA1-09 | turntable
Equipment standard configuration: Φ900mm round turntable turntable circle motor governor frame bottle guide Infeed guide Bottle guide
Optional: Loading platform Lane separation device | 1
1 1 1 1 1 1 1
1 1 |
5. List of main materials
serial number | part | material | Remark |
1 | guardrail | 304 stainless steel+LY12 | |
2 | bottle guide | Stainless steel spring steel sheet | |
4 | 900 turntable | LY12 spray Teflon |
