Level-Stacked Bag Counting and Straightening Machine
more
Clip held with PXG-15
1) Technical parameters：
project | Specific parameters | Specific parameters |
velocity | At 5-40 m / min | |
source | AC220V 50-60HZ | |
power | 0.09KW | |
With spacing | 35mm～150mm | |
pressure | 0.4-0.7Mpa | |
outline dimension | 600mm(L)x800mm(W)x1050mm(H) |

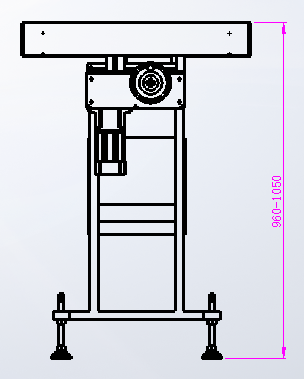

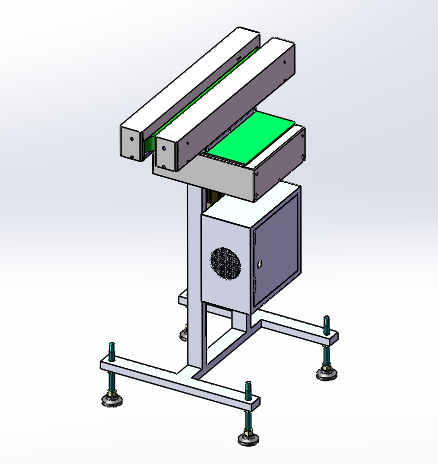

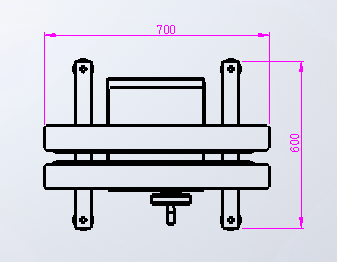

2) Machine construction diagram:
.png)
.png)
3) Performance characteristics:

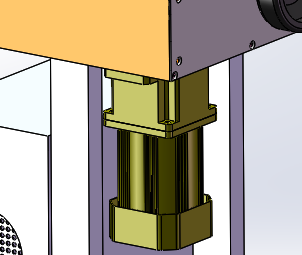

1. Use Panasonic motor, easy to operate and smooth operation；
.png)

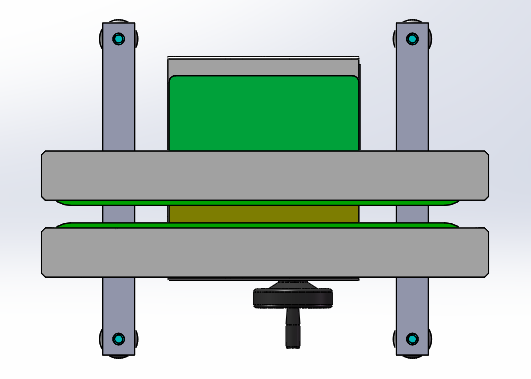

2. The width can be adjusted according to the bottle size.
.png)
3. According to the GMP standard, metal joints are 304 stainless steel; reasonable design, easy, maintenance, clean and simple;
.png)
4) List of main components:
order number | order number | order number | order number |
1 | Circuit breaker (1P10A) | Allen-bradlen | |
2 | Inverter (0.2KW) | Allen-bradlen |
