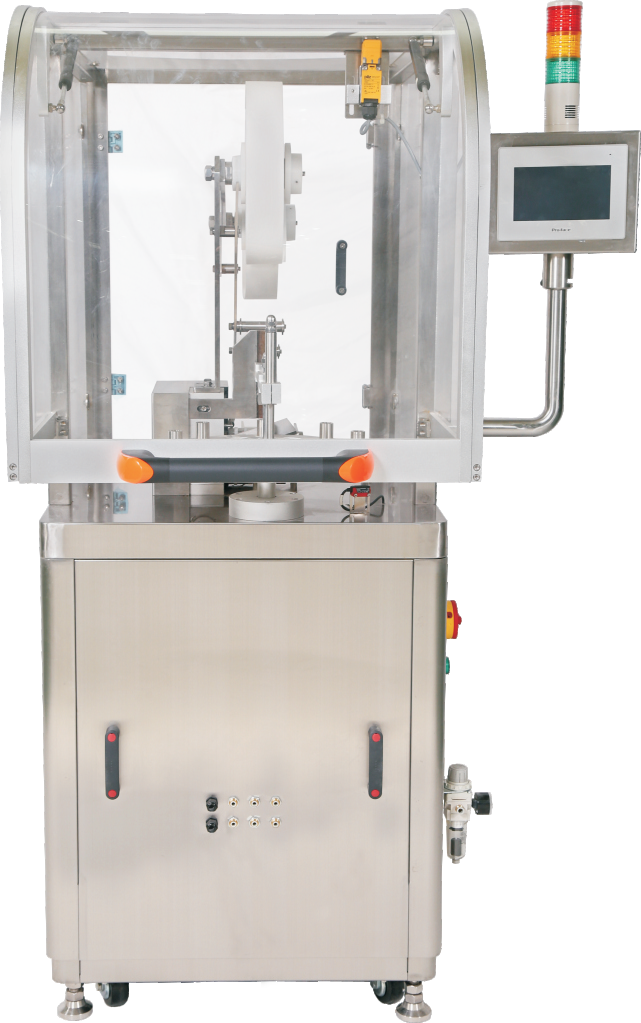

High Speed Plug Paper PXC-12A
The main structure is made of 304 stainless steel material and meets the GMP requirements.
The main components are all using internationally famous brand products.
The SIEMENS PLC and Proface touchscreen controls were used.
German SEW motor and splitter.
Use the gear to drive the crank linkage press to complete the prepress paper and the press paper into the bottle.
Pour back paper technology is used to prevent the paper mass edges from protruding outside the bottle.

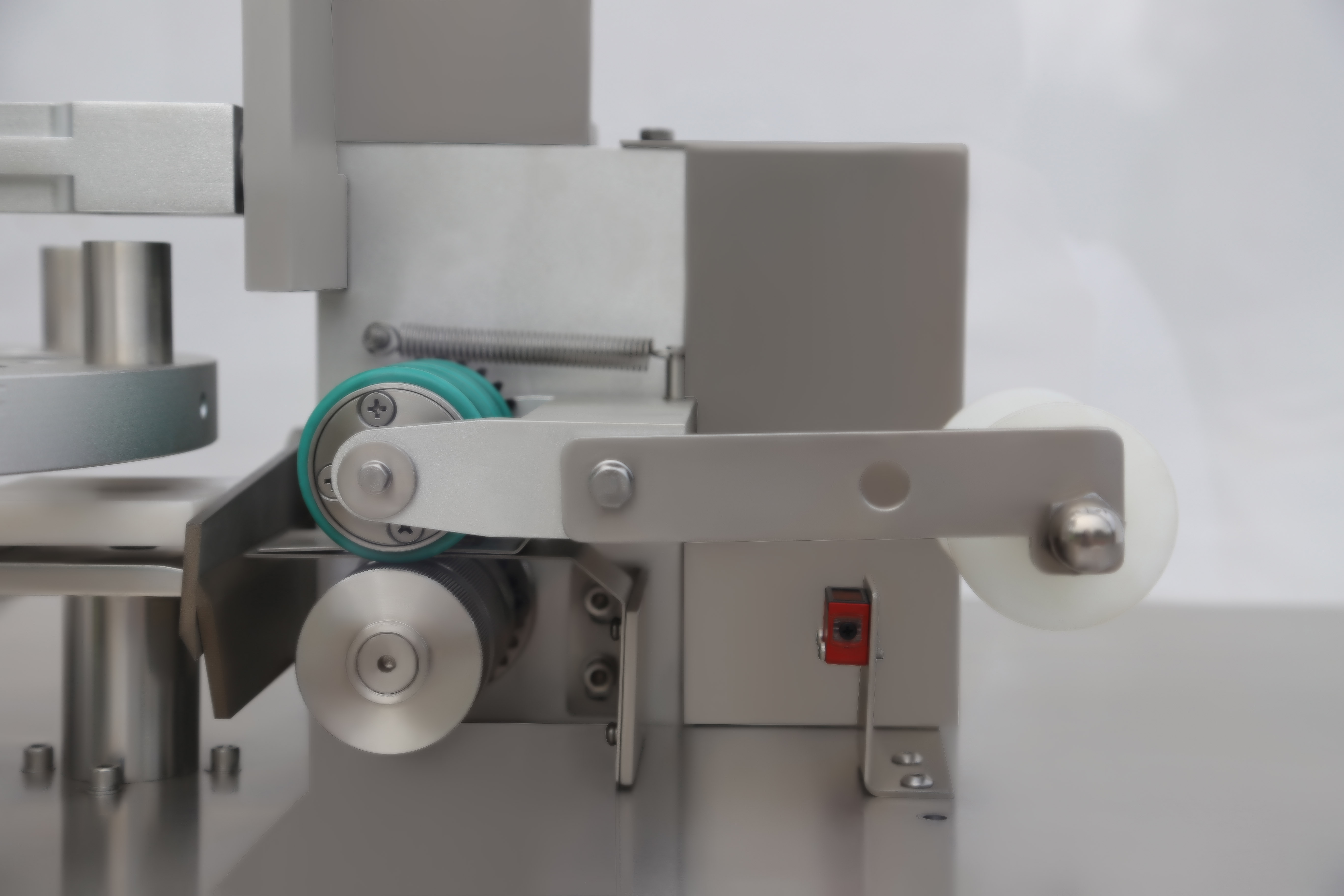

Cam and ratchet mechanism are used to complete paper feeding and paper cutting.
One or more paper clumps may be stuffed at a time upon request.
The plug-in confirmation detection elimination feature can be configured (optional).
Configure paper mass with high bottle port detection (optional).There is no such feature at this time
Adjust the whole machine height by using the motor drive.
3）List of main components
order number | order number | order number |
1 | jacking motor | Japanese, Panasonic |
2 | reduction box | Japanese, Panasonic |
3 | any power-generating or power-driven machine | Germany SEW |
4 | touch screen | Japanese, Proface |
5 | PCU | SIEMENS, Germany |
6 | Rotate the isolation switch | America EATON |
7 | circuit breaker | SIEMENS, Germany |
8 | Leakage protector | SIEMENS, Germany |
9 | frequency transformer | Allen-Bradley / SIEMENS, Germany, USA |
10 | Three-color police lamp | Q-Light, South Korea |
11 | photosensor | Germany LEUZE |
12 | auxiliary relay | Weidmuller, Germany |
13 | A U-shaped photoelectric sensor | Japan OMRON |
14 | decollator | He xing |
15 | air cylinder | Japan SMC |
16 | Filter the pressure relief valve assembly | Japan SMC |
17 | terminal | Phoenix, Germany |
4) Equipment configuration list
model | model | model |
PXC-12A | High speed paper plug machine Equipment random configuration: HMI touch screen PLC navar Open the paper organization paper advance mechanism Paper cutting institutions Plug paper mechanism Tower transfer mechanism Change the bottle positioning device Electrical control box Stainless steel rack No bottle / reverse bottle test for electric eyes Product bottle electric eye Three color warning lights Optional: Tray putter removal mechanism Plug in to confirm the test Paper group is high in the bottle mouth detection | 1
1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 |
、List of Random Spare Parts (None)
order number | order number | order number | order number | |
1 | O-type sealing ring | 5 | piece | |
2 | locking-in range on synchronization | 1 | ||
