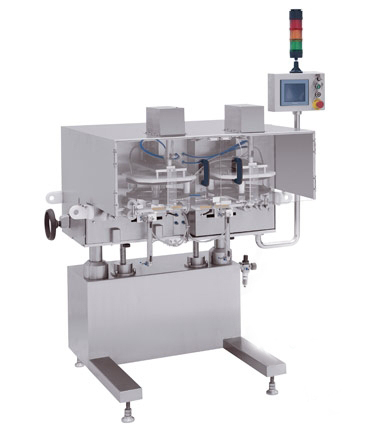

High speed cotton machine PXC-12C

High speed cotton machine PXC-12C

1) Technical parameters

2) Operating principle:

The product will be manually loaded to the edge of the cotton roller, and the equipment can automatically run, automatically send, like, pull, plug the material pipe, turn to the bottle mouth, and plug it into the bottle.The equipment automatically sets the bottle. When the bottle positioning time meets the parameters set by the PLC programming, the bottle is automatically changed by the pneumatic system.Fully automated operation; available multiple times per bottle.

3) Performance characteristics:

The machine is compact, beautiful and generous, convenient to use and maintenance;

Using the programmable controller PLC control, the Chinese interface touch screen, easy to learn, easy to operate;

Multi-directional electric eye detection, to ensure the accuracy of cotton plug;

The length of the plug cotton can be set according to the process requirements (length range: 90~180mm);

Suitable for continuous strip of cotton in barrel or other packaging, reliable work and convenient adjustment;

Lift lift rack for bottles of different heights;

The whole machine is made of stainless steel and other materials meeting GMP requirements;

台，

The operation interface adopts the folding console, beautiful and generous shape, easy to use and maintenance;

Can be used by single-machine or multi-machine wiring.

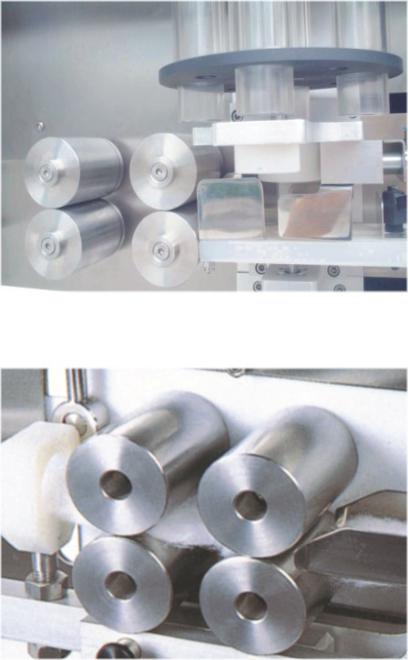

feed mechanism:

Anchuan servo motor to drive four-cylinder wheel system, cotton delivery and cotton cutting positioning is accurate and reliable.

Cotton plug mechanism:

Japanese SMC cylinder plug cotton, simple and agile action, accurate and reliable action;

4) List of main components
