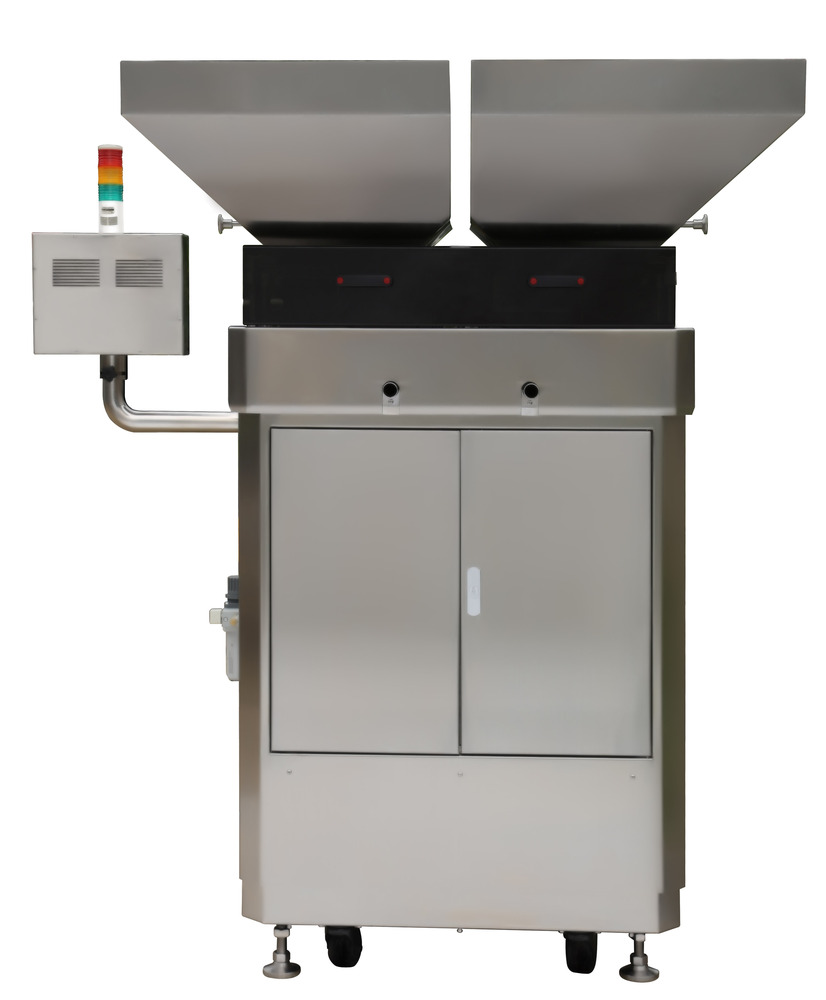

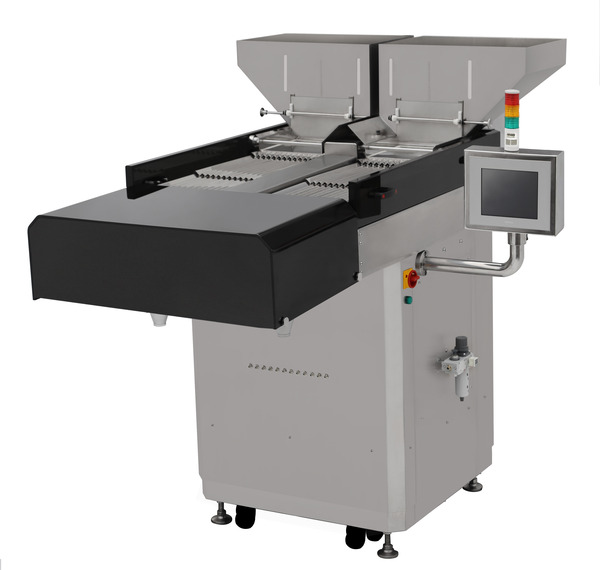

Electronic automatic granmachine PXB-16

Electronic automatic granmachine PXB-16

1) Technical parameters

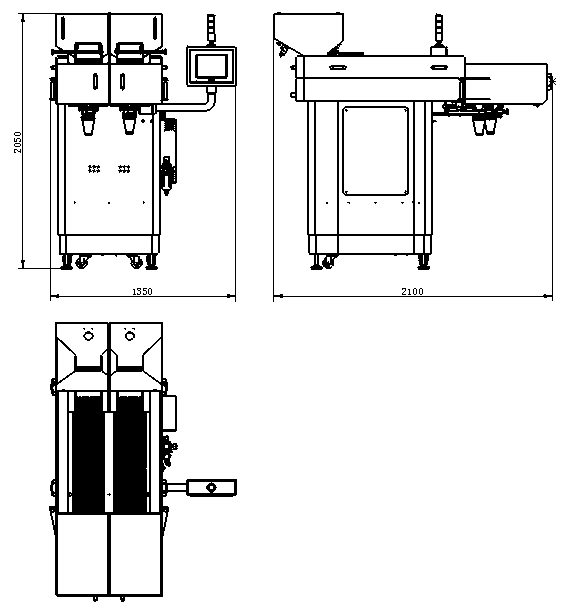

2）Machine structure diagram:

3) Performance characteristics

The main structure is made of 304 stainless steel material and meets the GMP requirements.

The components in contact with the drug are 316L stainless steel and other GMP compliant materials.

The main components are all using internationally famous brand products.

Using the FPGA and the Proface touch screen (10-inch) control system.

Various specifications of solid preparations, including soft, hard capsules, transparent capsules, tablets, pills, etc.

Large capacity 316L stainless steel bin with volume of 70 L.

The material warehouse is equipped with transparent observation window and low material potential eye, lack of material automatic alarm.

Steered three-level vibration structure, DC drive three-level vibrator, stable and efficient.

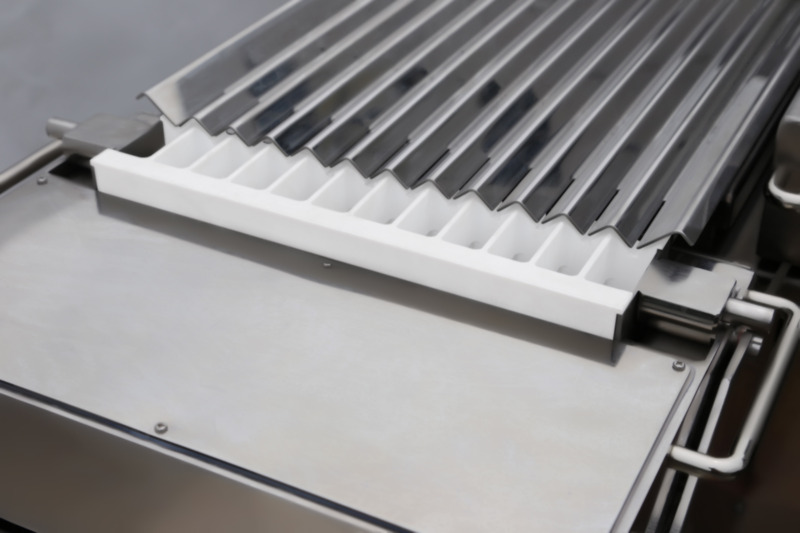

The tertiary vibrating groove plate is mirror-polished with 316L stainless steel material.

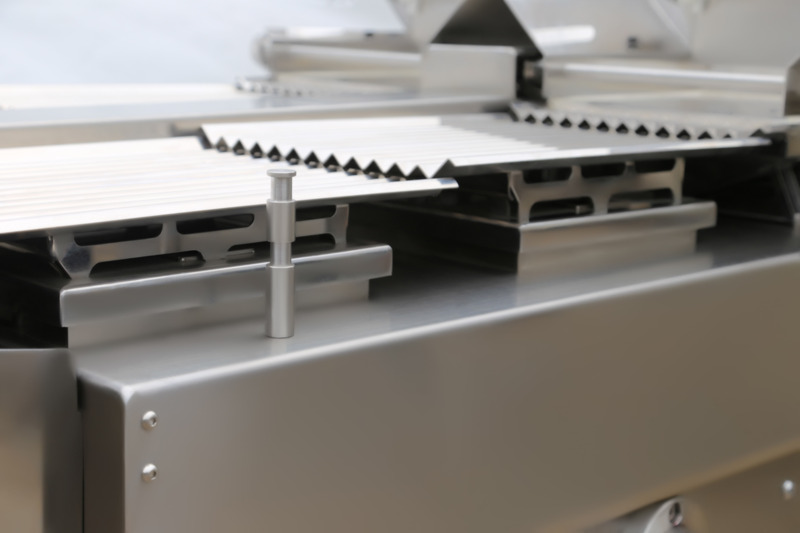

Three-stage vibration groove plate adopts pneumatic lock with embedded stuck buckle structure.

The touch screen operates the opening and closing of the pneumatic locking device without the tool.

The single wooden bridge structure can be configured to automatically remove the stack and effectively improve the speed of several grains (optional).

Full seal raises the three-level vibration base to prevent dust from entering the equipment.

Infrared dynamic electronic scanning technology, matrix number of particle electric eye arrangement.

Digital particle electric eye has the function of automatic light filling and limit alarm stop, to avoid false number particles caused by dust occlusion.

Each digital particle channel is equipped with 4 sets of emission and 8 groups of receiving digital particle electric eyes.

Special specification segmentation slot can be customized for several particles of small specification drugs.

Special software programs are used for several grains of transparent capsules.

With pre-grain function, simultaneous counting and bottling.

Each 8 tracks corresponds to 1 drop mouth.

Complete SMC pneumatic small material gate system, integrated solenoid island.

The small material door cylinder detection system can be configured to monitor the small material door cylinder opening time parameters (optional).

It has the automatic particle detection and elimination function of missing particles.

Special designed dust removal mechanism: primary vibration plate sieve structure, equipped with dust collection warehouse at the bottom; bottom vibration plate outlet bar hole at the bottom; the front and rear dust collection warehouse synchronously connected with vacuum suction pipe from the back of the equipment and connected to industrial vacuum cleaner (optional).

Vibrating filling mechanism to avoid bottling blocking phenomenon.

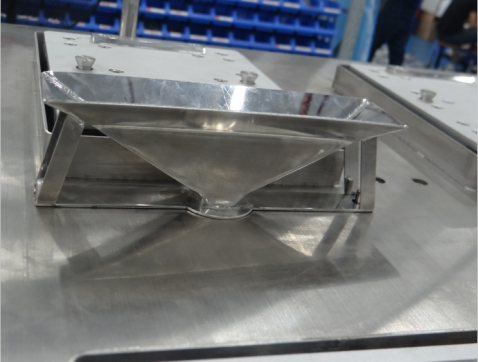

The feeding mouth is customized according to the bottle mouth specifications to avoid bottle leakage.

Secondary material gate mechanism, counting and bottling at the same time, to improve the production speed.

Dual cylinder in and out of the bottle positioning mechanism, three-dimensional adjustment, scale display, accurate and convenient.

Automatic detection and alarm of missing bottles and inverted bottles.

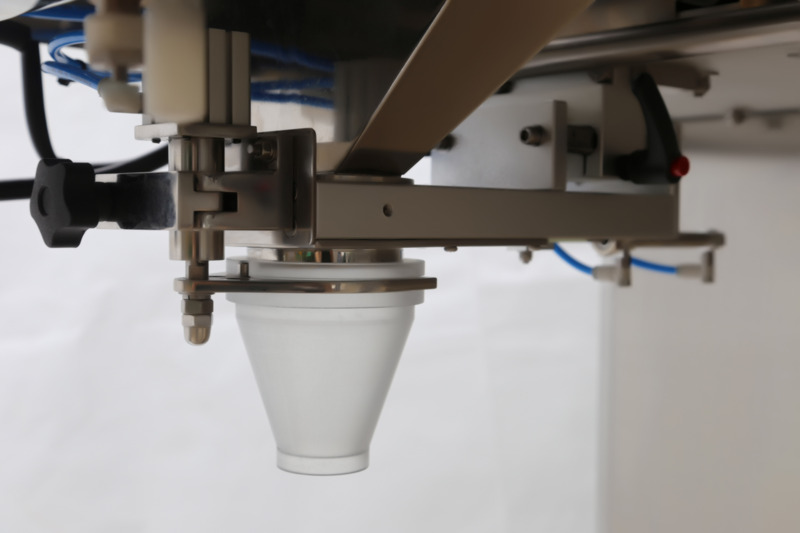

Drop nozzle electrostatic removal mechanism can be configured (optional).

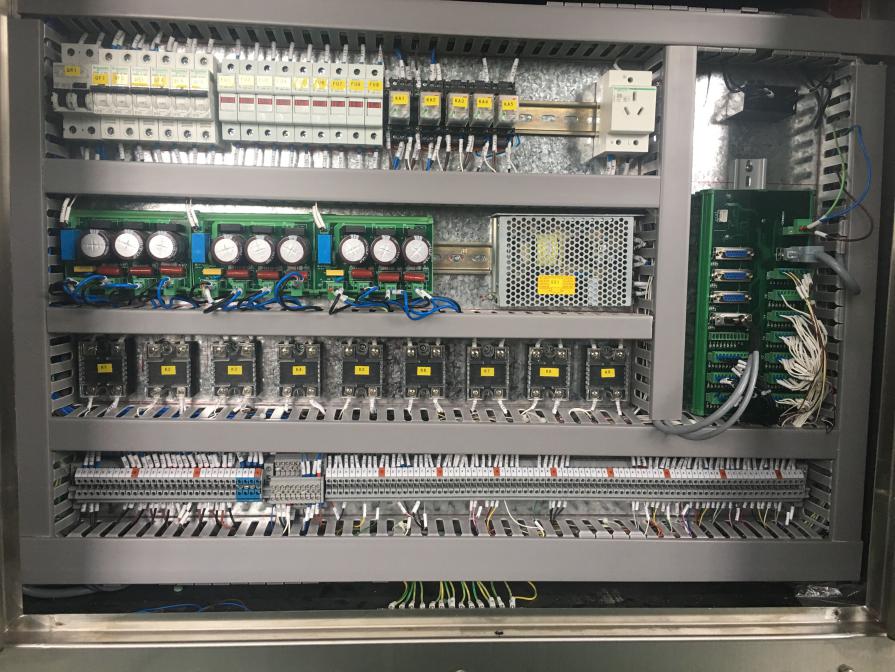

Special custom complete set of FPGA control system.

Automatic fault diagnosis and real-time monitoring and alarm display system.

It can store 100 sets of product parameters, and the replacement variety can directly call the prestored parameter group.

The Level 3 password permission function can be configured.

One type 304 stainless steel fully sealed body cover, effective dust-proof.

The back of the fuselage door type structure, convenient and easy to maintain.

Touch screen control, the motor drive to adjust the whole machine height.
