Level-Stacked Bag Counting and Straightening Machine
moreThe main structure is made of 304 stainless steel material and meets the GMP requirements.
The components in contact with the drug are 316L stainless steel and other GMP compliant materials.
The main components are all using internationally famous brand products.
Using the FPGA and the Proface touch screen (10-inch) control system.
Various specifications of solid preparations, including soft, hard capsules, transparent capsules, tablets, pills, etc.

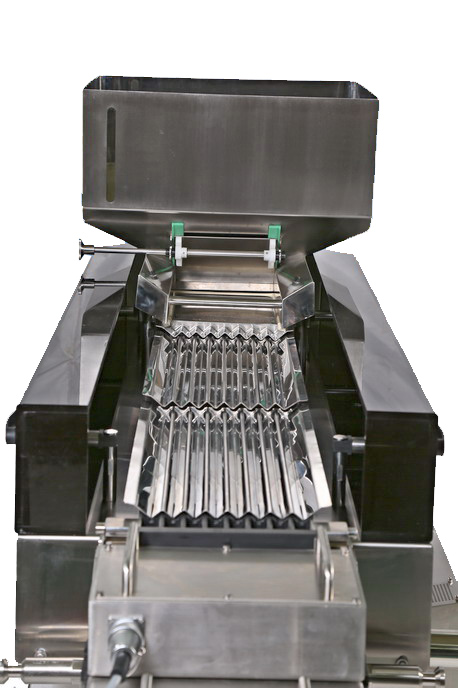

Electronic automatic granmachine PXB-08
Technical parameters
Specific parameters | remarks | |
Stabilize production speed | For 5,000 grains / min | Related to the material specifications |
Single bottle volume | 1-1,000 grains / bottle | |
drug specifications | Length 3-21mm diameter 3-15mm thickness 3-10mm | |
Vine diameter specification | Round bottle 20~ φ60mm square bottle 20 ~ 60mm | 单道进瓶 |
The bottle high specification | 40~200mm | |
source | AC220V 50/60HZ | |
power | About 1.2KW | |
pressure | 0.5-0.7Mpa | |
gas consumption | About 100L / min | |
outline dimension | Approximately 1150mm (L) 1900mm (W) 2050mm (H) | |
weight | About 750Kg |
Machine structure diagram:
3) Performance characteristics
The main structure is made of 304 stainless steel material and meets the GMP requirements.
The components in contact with the drug are 316L stainless steel and other GMP compliant materials.
The main components are all using internationally famous brand products.
Using the FPGA and the Proface touch screen (10-inch) control system.
Various specifications of solid preparations, including soft, hard capsules, transparent capsules, tablets, pills, etc.
Large capacity 316L stainless steel bin with volume of 50 L.
The material warehouse is equipped with transparent observation window and low material potential eye, lack of material automatic alarm.
Steered three-level vibration structure, DC drive three-level vibrator, stable and efficient.
The tertiary vibrating groove plate is mirror-polished with 316L stainless steel material.
Three-stage vibration groove plate adopts pneumatic lock with embedded stuck buckle structure.
The touch screen operates the opening and closing of the pneumatic locking device without the tool.
The single wooden bridge structure can be configured to automatically remove the stack and effectively improve the speed of several grains (optional).
