Level-Stacked Bag Counting and Straightening Machine
moreThe motor provides power, and the two conveyor belts move relative to each other (the whole line conveyor belt is in the middle), which ensures the continuity of the whole line production and acts as a buffer storage bottle.

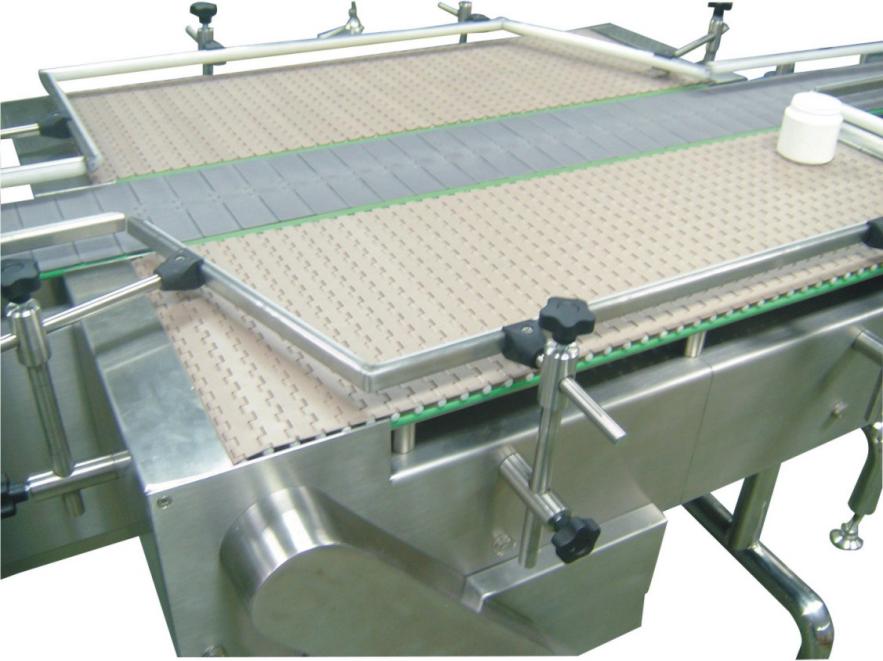

Hedging Platform PXG-20
1) Technical parameters:
project | Specific parameters | Remark |
Production speed | 0~16m/min | |
Conveying Surface Specifications | 1.2m*1m | |
power supply | AC220V 50/60HZ | |
power | About 0.9KW | |
Dimensions | 1200mm(L)x1000mm(W)x1000mm(H) | |
weight | About 150Kg |
working principle:
The motor provides power, and the two conveyor belts move relative to each other (the whole line conveyor belt is in the middle), which ensures the continuity of the whole line production and acts as a buffer storage bottle.
2) Performance characteristics
² This equipment adopts conveying plate chain and conveying surface frame hollow structure;
² Compact structure, beautiful appearance, easy to use and maintain;
² Adopt German original SEW frequency conversion motor, stable performance and stable operation;
² Equipped with emergency stop control, safe operation;
² With an adjustable gear lever, the buffer space can be adjusted;
² Made of AISI 304 stainless steel, in line with GMP requirements;
² It can be used as bottle arranging, and can also be connected with various equipments to play a buffering role;
When changing varieties, simple adjustment, convenient and quick.
Copy product links
Long by picture save/share
Three-head servo rotary cover machine PXD-100
The main structure is made of 304 stainless steel material and meets the GMP requirements. The main components are all using internationally famous brand products. The Mitsubishi PLC and Proface touchscreen controls were used. A variety of specifications of threaded cover, child safety cover, etc. Floor type large capacity stainless steel storage cover warehouse, capacity of 116L.
more
Double Head Servo Capping Machine PXD-70
The main structure is made of 304 stainless steel, which meets GMP requirements. The main components are all internationally renowned brand products. Adopt Mitsubishi PLC and Proface touch screen control system. Applicable to various specifications of screw caps, child safety caps, etc. Floor-standing large-capacity stainless steel storage cover with a volume of 116L.
more
Rotary capping machine PXD-25-10
The main structure is made of 304 stainless steel, which meets GMP requirements. The main components are all internationally renowned brand products. Adopt SIEMENS PLC and Proface touch screen control system. Applicable to various specifications of screw caps, child safety caps, etc. Configurable gland function (optional). Floor-standing large-capacity stainless steel storage cover with a volume of 116L.
moreContact Supplier
