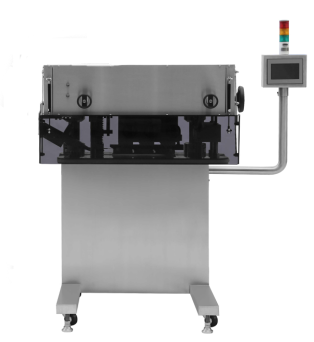

Secondary capping machine PXD-20 -2
1) Technical parameters
project | Specific parameters | Remark |
production speed | 200 bottles/min | related to material specifications |
Cover Specifications | Height 10-30mm Diameter Φ20～Φ55mm | |
Bottle diameter specification | Round bottle φ20~φ120mm Square bottle 20~120mm | |
bottle high specification | 40~200mm | |
power supply | AC220V 50/60HZ | |
power | About 1.25KW | |
air pressure | 0.5-0.7Mpa | |
Air consumption | About 50L/min | |
Dimensions | About 1100mm(L)×900mm(W)×1700mm(H) | |
weight | About 550kg |
2) Performance characteristics
² The main structure is made of 304 stainless steel, which meets GMP requirements.
² The main components are all internationally renowned brand products.
² Adopt SIEMENS PLC and Proface touch screen control system, easy to learn and operate;
² Applicable to various specifications of screw caps, child safety caps, etc.

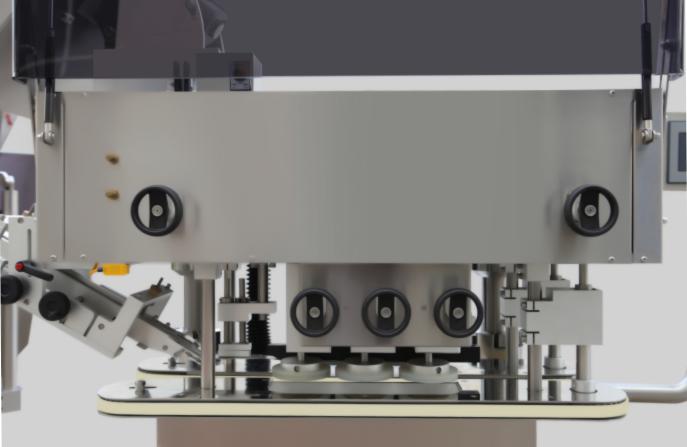

² The capping mechanism consists of a clamping belt and four sets of capping wheels, and the last set is used to detect torque.
² The clamping belt is made of non-toxic material timing belt, and the capping wheel is made of non-toxic material wear-resistant silicone.
² The capping mechanism adopts a digital display rotating handwheel adjustment mechanism, which is convenient and quick.
² The capping wheel drive adopts bevel gear box mechanism.

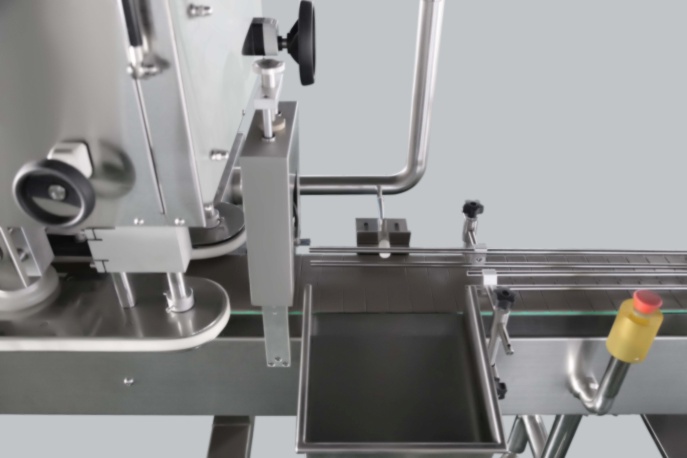

² Equipped with defective capping, no aluminum foil, no cap detection and rejection device.
² The operation interface adopts a folding console, which is beautiful in appearance and easy to use and maintain;
² The operating system can configure the three-level password authority function according to user requirements.
²
3) List of main components
serial number | name | brand |
1 | Motor (capping mechanism) | German SEW |
2 | Motor (clamping mechanism) | German SEW |
3 | Filter Regulator Assembly | Japan SMC |
4 | leakage protector | SIEMENS Germany |
5 | breaker | SIEMENS Germany |
6 | One-way throttle valve | Japan SMC |
7 | The electromagnetic valve | Japan SMC |
8 | Rotary isolating switch | EATON |
9 | Programmable Controllers | SIEMENS Germany |
10 | Proximity sensor | Korea Autonics |
11 | Intermediate relay | Weidmuller, Germany |
12 | Inverter | American Allen-Bradle y/Germany SIEMENS |
13 | governor | Japan Panasonic |
14 | touch screen | Japanese Surface |
15 | photoelectric sensor | Germany LEUZE |
16 | three-color warning light | Korea Q-light |
17 | optical fiber amplifier | Japan KEYENCE |
18 | terminal | Phoenix, Germany |
19 | cylinder | Japan SMC |
(The above list may change slightly and use other brand products of the same level)
