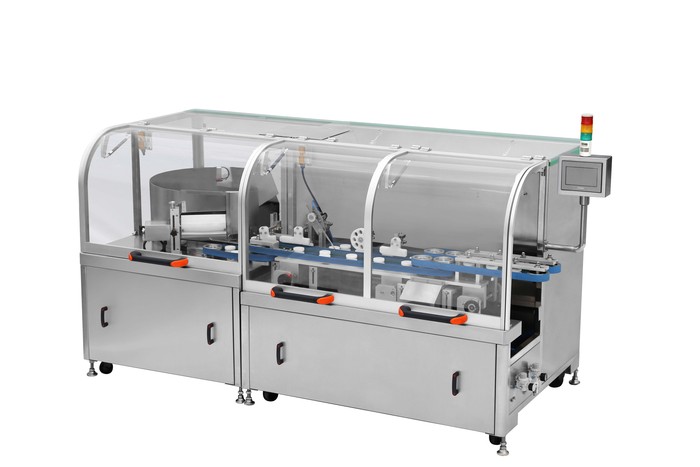

High-speed bottle machine PXA-35

High-speed bottle machine PXA-35

1) Technical parameters

2) Performance characteristics

The main structure is made of 304 stainless steel material and meets the GMP requirements.

The main components are all using internationally famous brand products.

The SIEMENS PLC and Proface touchscreen controls were used.

Plastic bottles of various specifications, including round bottles, square bottles, different bottles.

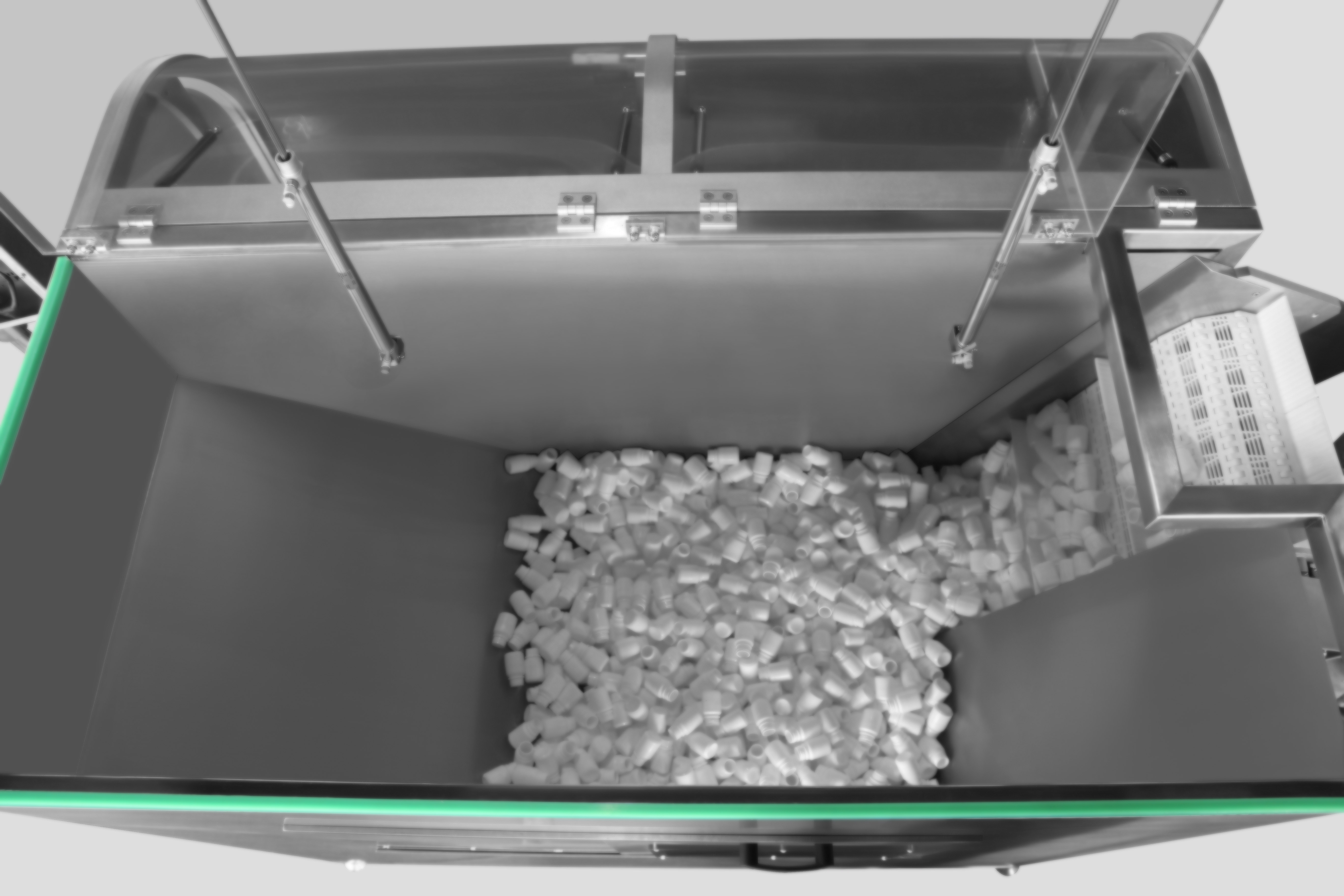

Large capacity 304 stainless steel bottle storage bin, equipped with pneumatic control dust cover.

The bottle material warehouse is equipped with low potential eye, automatic lack of bottle alarm.

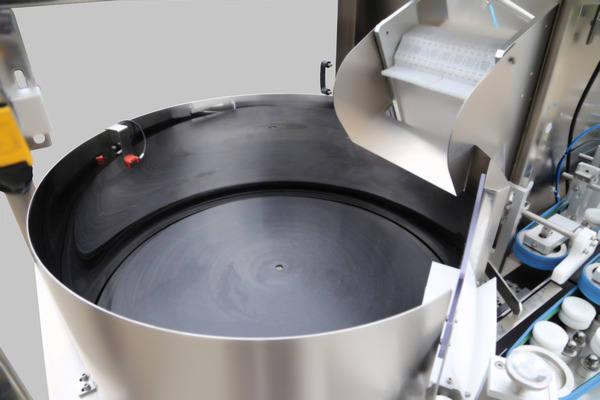

通过监控理瓶转盘内瓶子数量情况，输出启停信号至提升机构。

更换产品规格时，仅需更换理瓶转盘规格件，方便快捷。

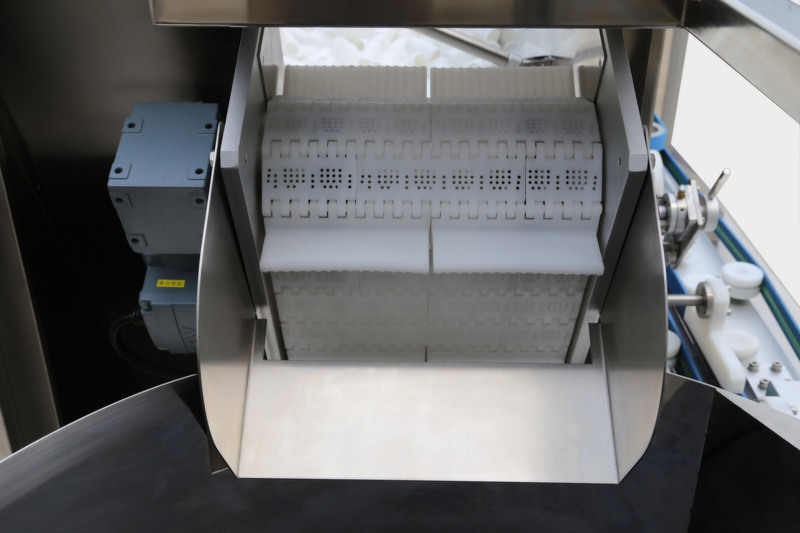

The bottle finishing mechanism is driven by the Panasonic motor.

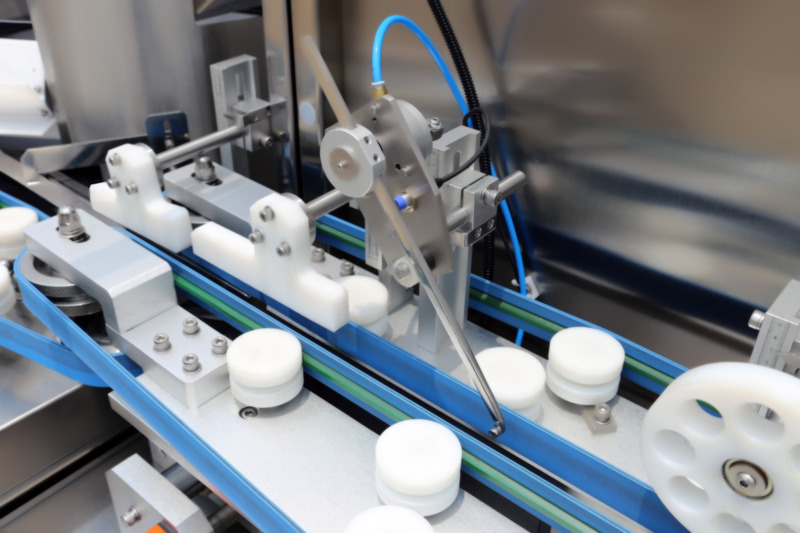

The bottle flip mechanism is driven by a FESTO cylinder.

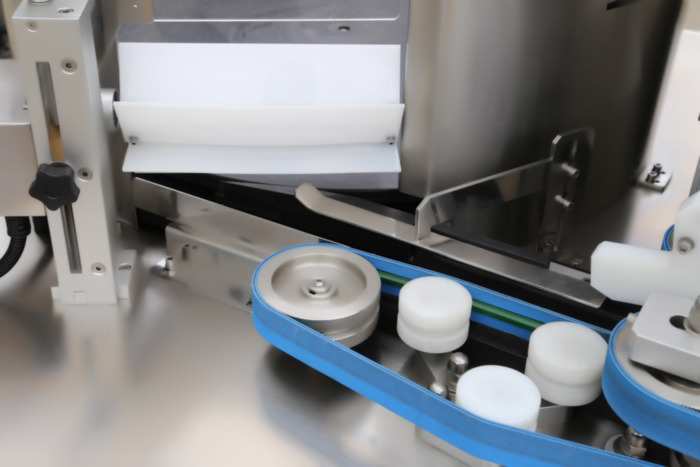

Hold the conveyor mechanism and keep the bottle upright to ensure that the bottle smoothly enters the rear process conveyor belt.

Bovial vial are provided at the outlet.

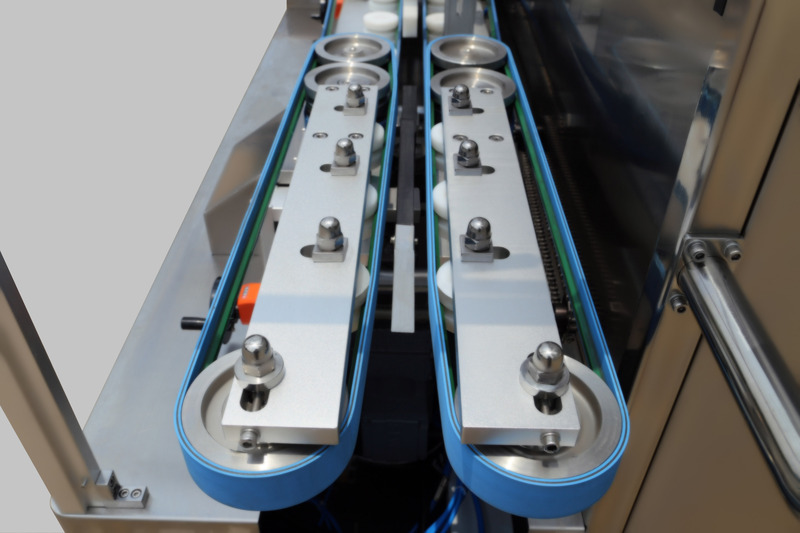

When replacing the clamped belt, only release the tensioning screw, quick and convenient.

Electrostatic elimination and vacuum suction device can be configured to assist in cleaning the bottle body (optional).

inverted bottle, inverted bottle detection and elimination device (optional).

The outlet bottle mechanism can be configured (optional).

The Level 3 password permission function can be configured (optional).Standard standard, whether to delete

3) List of main components
