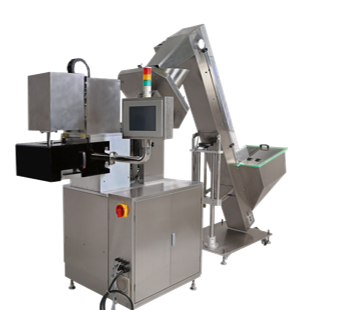

Single-head servo-rotary cover machine PXD-40

Single-head servo-rotary cover machine PXD-40

1) Technical parameters

operational principle:

The cap is stored in the lower hopper and transmitted to the cover cutter via a frequency conversion lift belt.The bottle cap is sent to the conveyor belt through the slide device, and the pneumatic clip cap and the servo delivery cap move forward to the bottle mouth. The rotary cap servo starts to tighten the lid and show the rotary cap torsion.The purpose is to be fast, efficient, accurate positioning, and greatly improve the stability of the spin cover success rate.

2) Performance characteristics

The machine is compact in structure, beautiful in shape, and convenient in use and maintenance;

The fuselage cover is made of stainless steel AISI 304 material and meets the GMP requirements;

Automatic cover and rotary cover, reduce the labor intensity of workers;

The main motor adopts the original German SEW frequency conversion speed control motor;

The whole machine adopts the full Chinese interface touch screen, PLC control, easy to learn, easy to operate;

Using the tooth ring type cover, no back cover, no card cover, fast speed, easy to adjust;

Adopt a unique supporting and covering mechanism;

The local control system selects Allen-Bradley control system, which is currently at the leading level in the industry, integrating computer technology, communication technology and automatic control technology, the system has strong expansion ability, networking ability and good openness;

The operation interface adopts the folding console, beautiful and generous shape, easy to use and maintenance;

Suitable for rotary threaded cover, anti-theft cover.

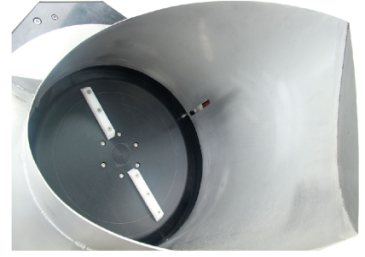

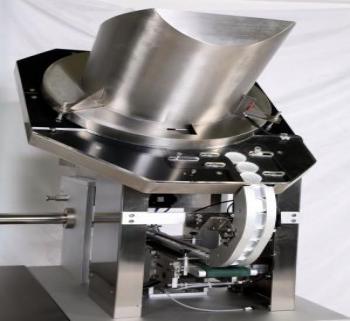

Storage cover cover and drop cover:

The upper cover part adopts the ladder lifting belt, the bottle cover feeding speed is fast, small noise;

Replacing the variety is very convenient and fast;

The drop cover structure has the automatic function of removal of reverse cover (the principle of bottle cap center of gravity offset, which can be blown) to ensure that the bottle cap smoothly enters the slide and avoid material blocking.

Component

Automatically arrange the bottle cap according to the specified direction and cover accurately without reverse cover.

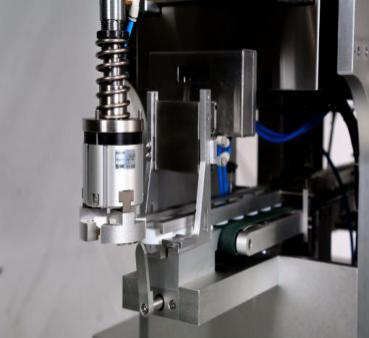

Delivery cover and rotary cover parts:

It consists of a supply head servo motor, a rotary head servo motor, a clamhead cylinder, a rotary head cylinder;

With the torsion adjustment function, so that the spin cover is just right;

Parts in contact with the bottle cap, using non-toxic flat belt and non-toxic wear-resistant silicone;

When the special requirements, the magnetic torque regulator can be installed to adjust the torque more convenient and fast,

No oil pollution (option).

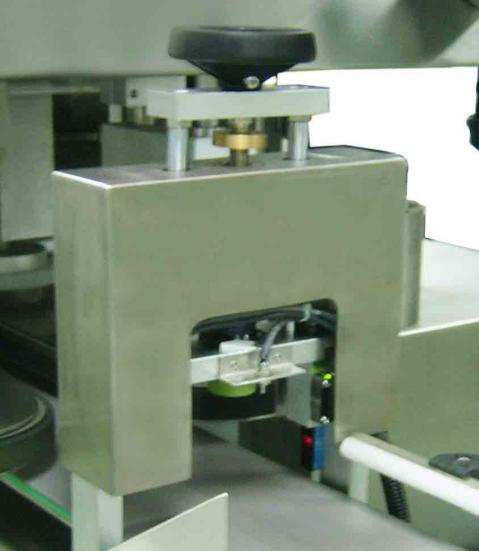

Detection and elimination part:

Automatic detection and eliminate unqualified products with poor rotary cover, no aluminum foil and no cover;

In case of a sudden power failure, the elimination reaches the elimination position.

3) List of main components
